NORTH STAR

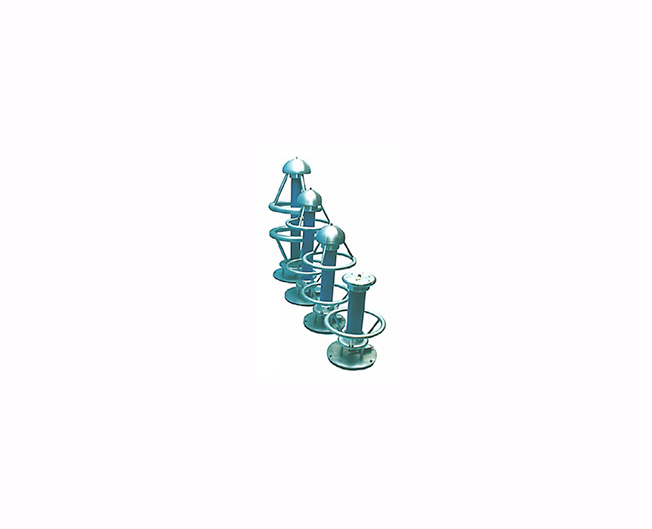

NORTH STAR 高压探头PVM 系列
PVM 系列
|
Model Number |
PVM-1 |
PVM-2 |
PVM-3 |
PVM-4 |
PVM-5 |
PVM-6 |
PVM-7 |
PVM-100 |
PVM-11 (PVM-10) |
PVM-12 |
|
Max DC/Pulsed V (kV) |
40/60 |
40/60 |
40/60 |
40/60 |
60/100 |
60/100 |
60/100 |
100/150 |
10/12 |
25/32 |
|
Max Frequency (Mhz.) |
80 |
80 |
40 |
120 |
80 |
80 |
110 |
80 |
50 |
80 |
|
Cable Impedance (ohms) |
50 |
50* |
50 |
50 |
50 |
50* |
50 |
50 |
50 |
50 |
|
DC - 2 Hz.accuracy |
<0.1% |
<0.1% |
<0.1% |
<0.1% |
<0.15% |
<0.15% |
<0.15% |
0.15% |
<0.1% |
<0.1% |
|
2 Hz. - 200 Hz. accuracy |
<1 % |
<1. % |
<2. % |
<1.5 % |
<1 % |
<1 % |
<1.5% |
1.5% |
<1.5 % |
<1.5 % |
|
200 Hz. - 5 Mhz. accuracy |
<1.5% |
<1.5% |
<3% |
<2% |
<1.5% |
<1.5% |
<2% |
2% |
<2.% |
<2.% |
|
> 5 Mhz. Accuracy |
<3% |
<3%* |
<4% |
<5% |
<3% |
<4%* |
<4% |
6% |
<4% |
<4% |
|
Input R/C (Megohm/pf) |
400/13 |
400/13 |
400/10 |
400/8 |
400/12 |
400/12 |
400/9 |
600/15 |
100(50)/15 |
300/7 |
|
Cable Length (ft./m) |
15/4.5 |
30/9 |
100/30 |
15/4.5 |
15/4.5 |
30/9 |
15/4.5 |
15/4.5 |
15/4.5 |
15/4.5 |
|
Standard Divider Ratio |
1000:1 |
1000:1 |
10,000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
2000:1 |
1000:1 (100:1) |
1000:1 |
|
Length (inches/cm.) |
19/47 |
19/47 |
19/47 |
19/47 |
19/47 |
19/47 |
19/47 |
23/57 |
7/18 |
9/23 |
